Sugarloaf with Visor 2019/09/16

Sugar Loaf with Visor

(c. Mid 14th Century)

Finished September 16, 2019

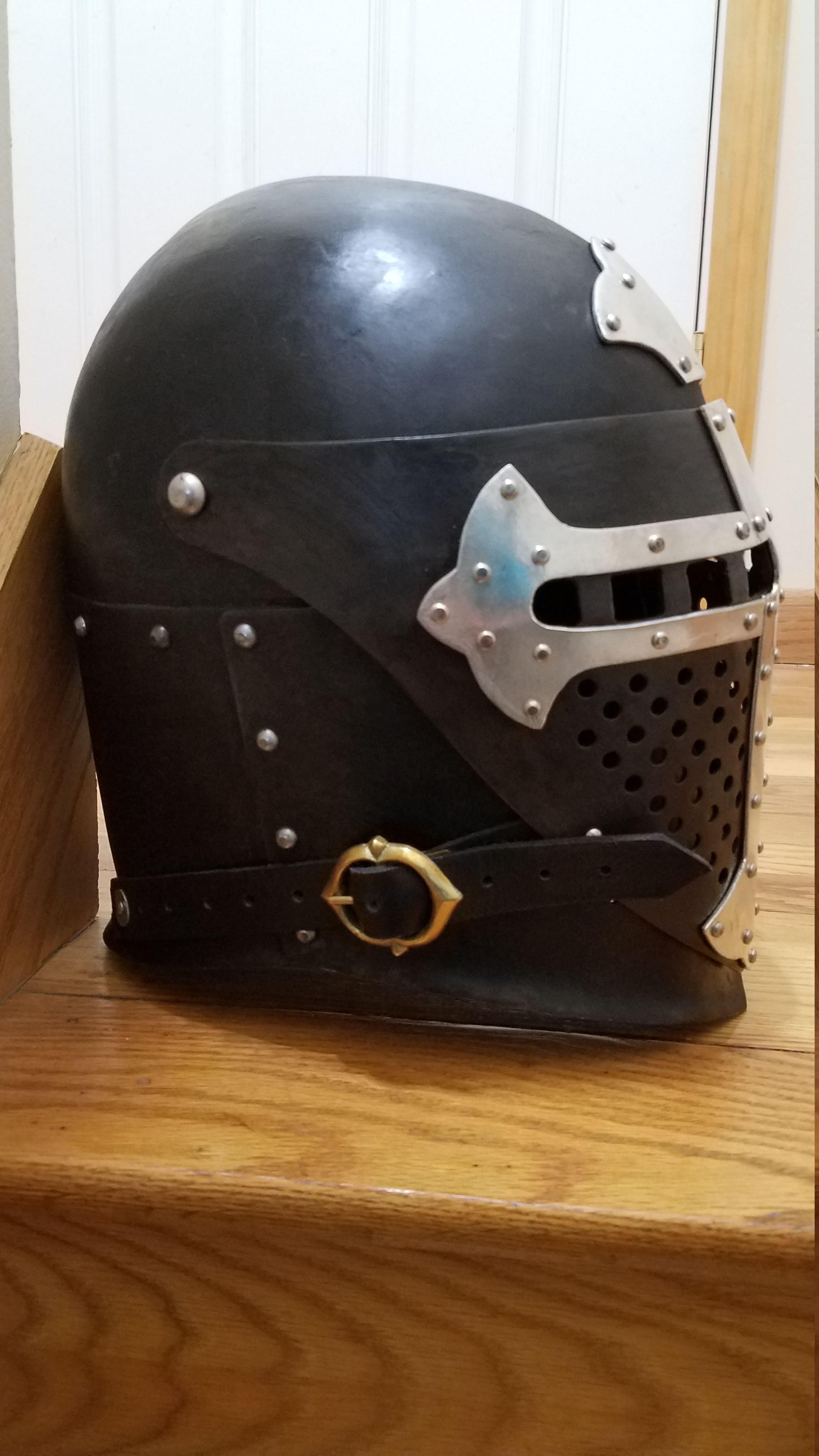

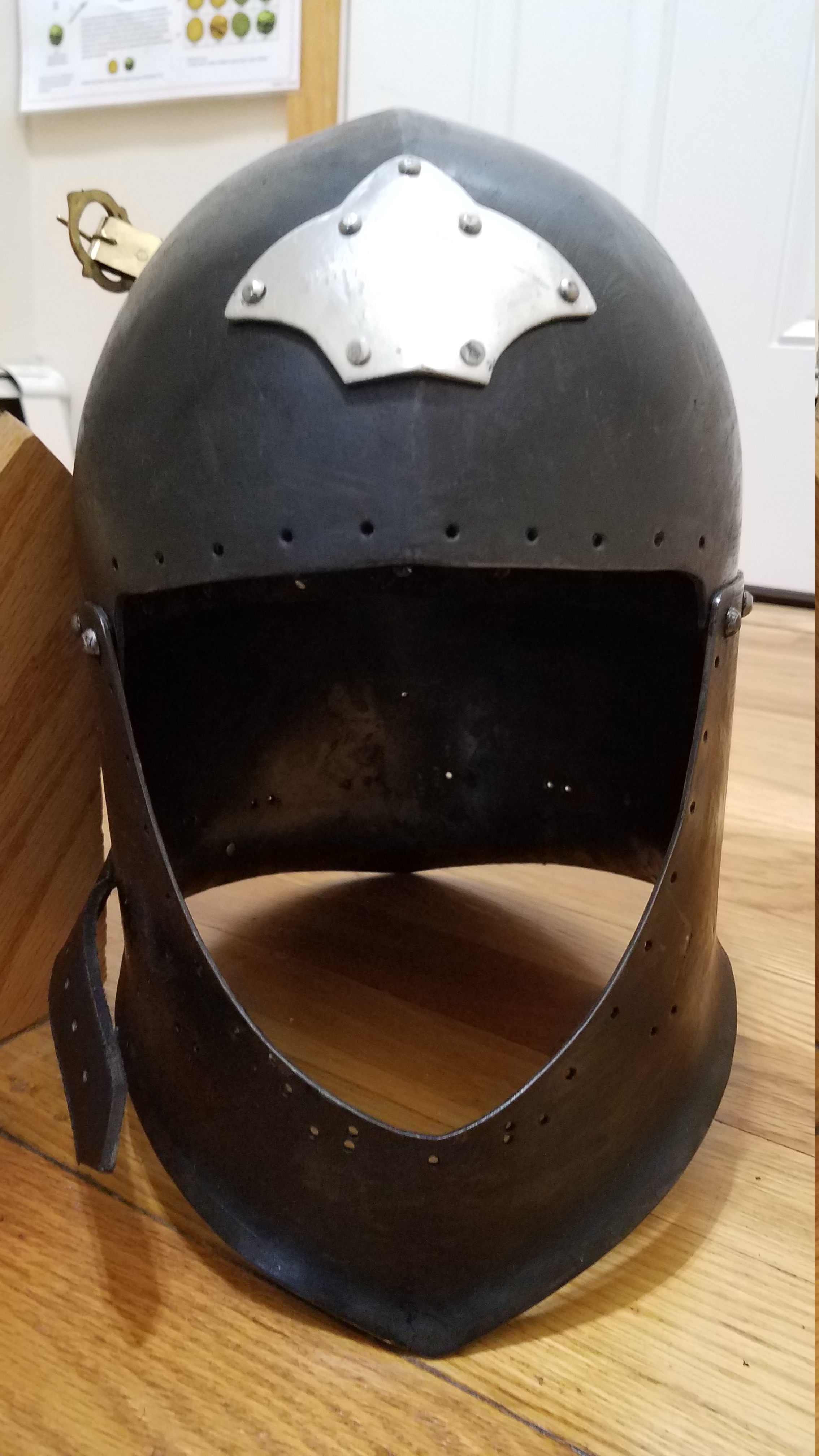

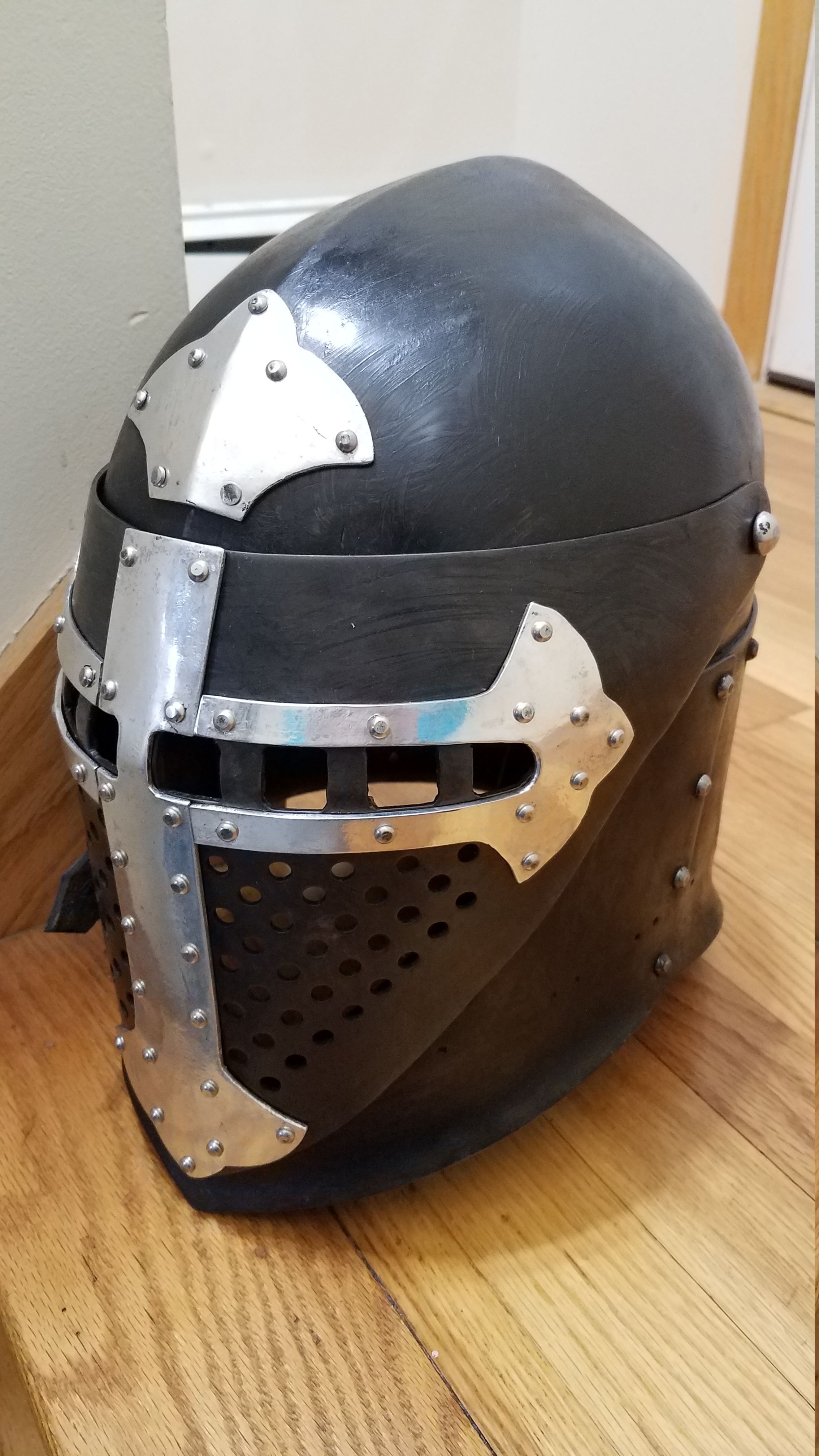

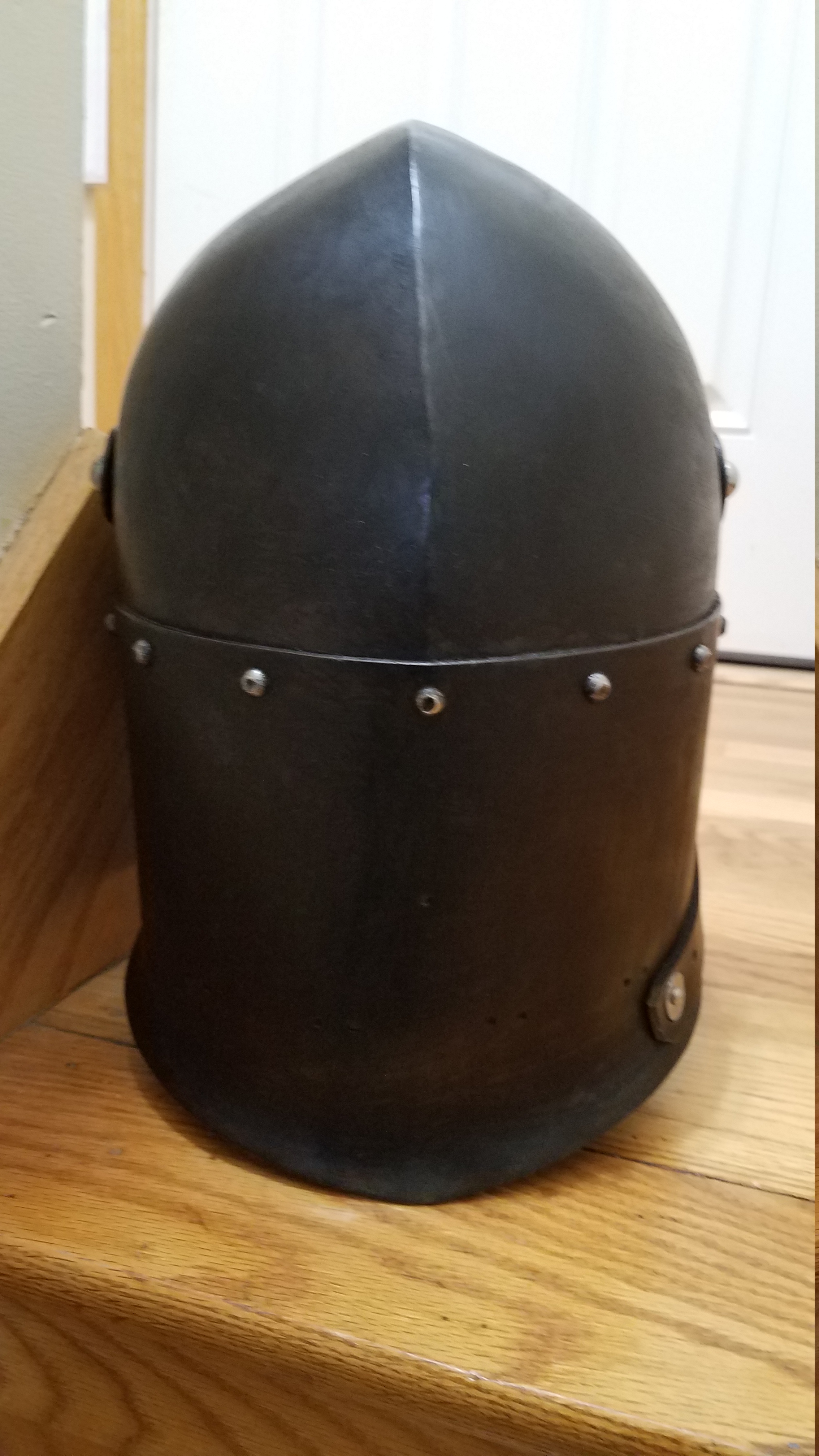

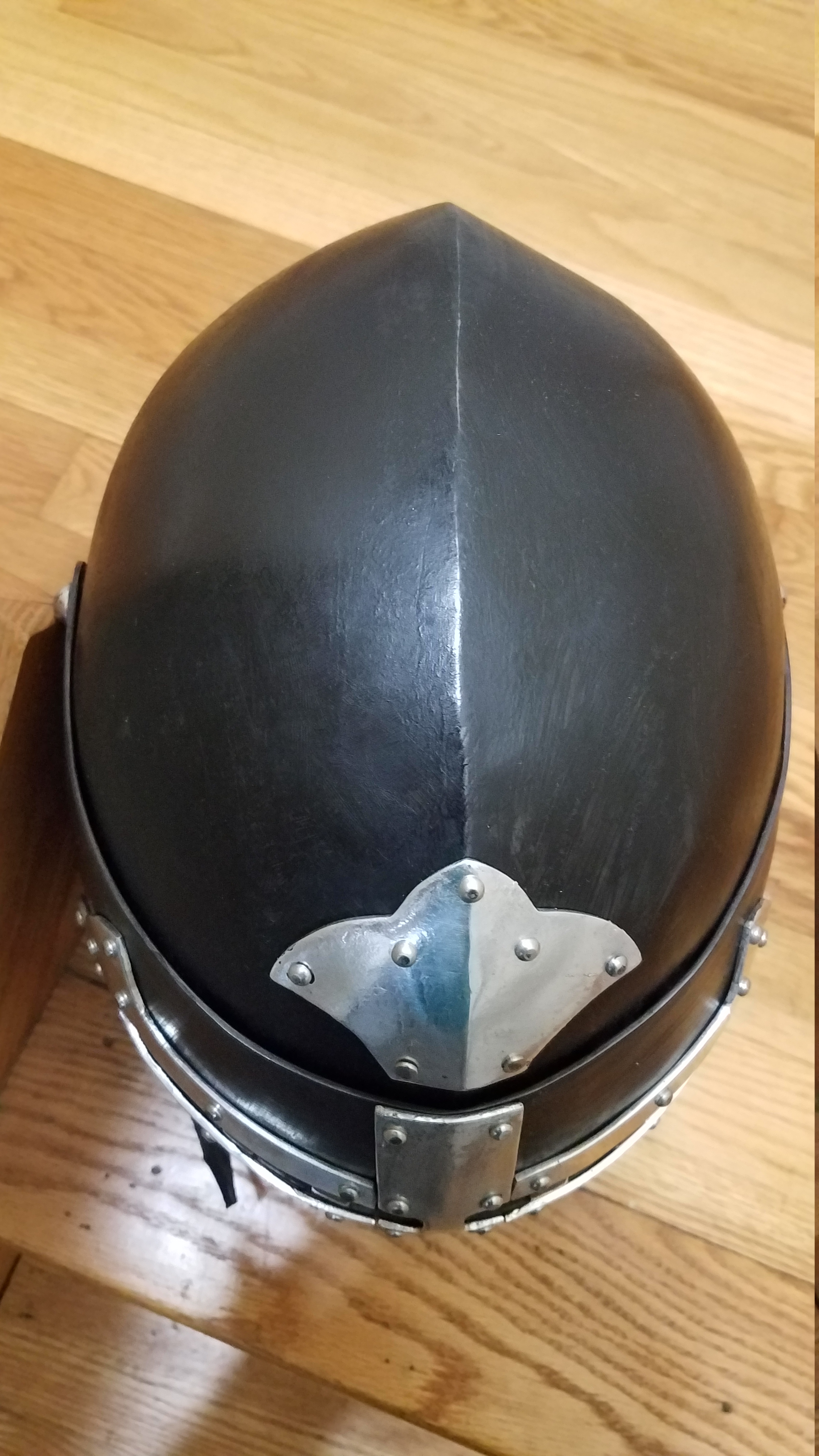

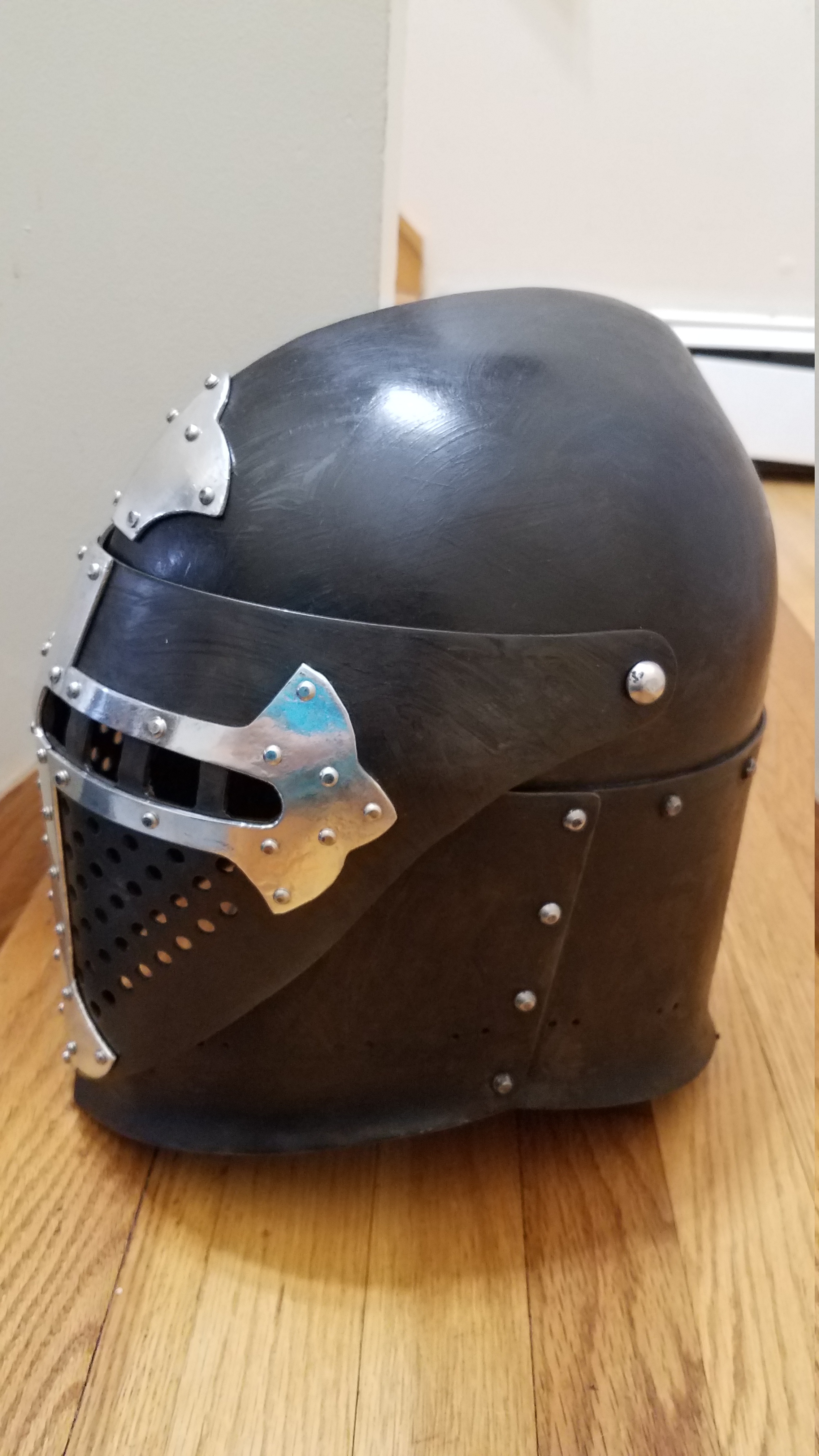

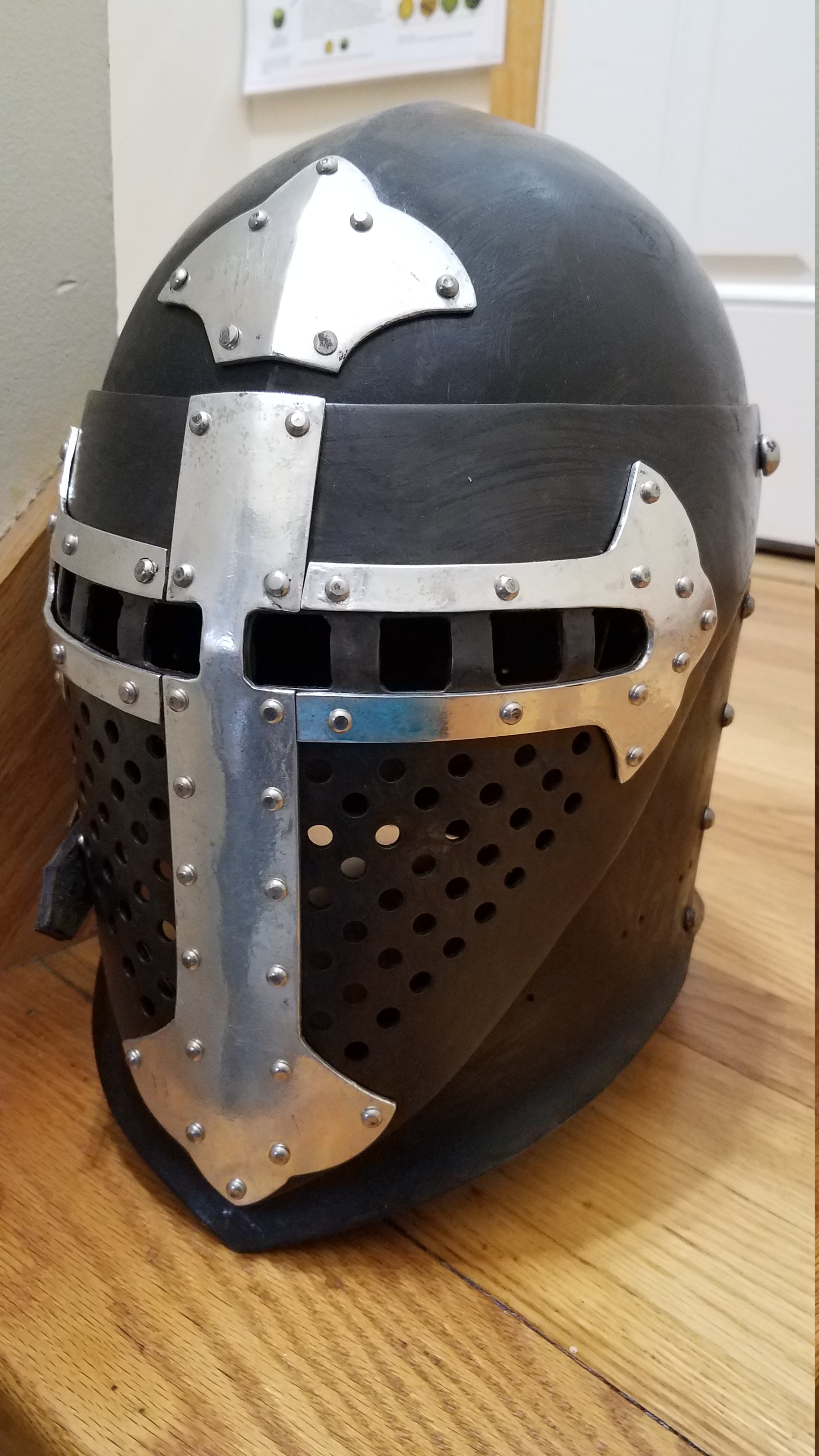

The helmet was made from 4130 alloy steel. The top has made from 0.125"/11ga/3.2mm and the rest of the helmet 0.090"/13ga/2.3mm. The helmet was heat treated to a HRC48 hardness. The helmet was blackened and the cross was tinned by hot dripping.

Patterns

CAD DXF file of the pattern for the ACL/IMCF/HMB/BotN version of this Visored Sugarloaf Helm. You can use this file to machine cut the metal plates.

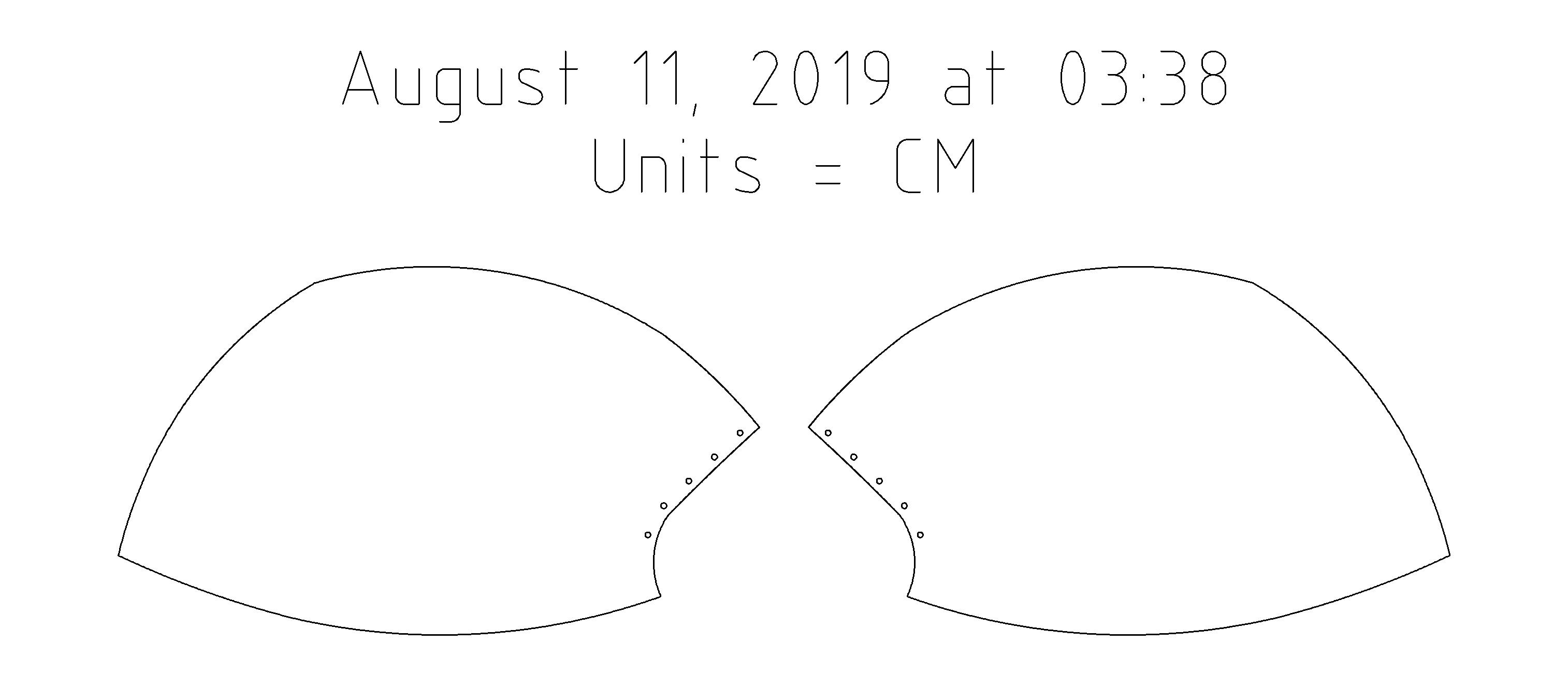

visored_sugarloaf_top_L.dxf

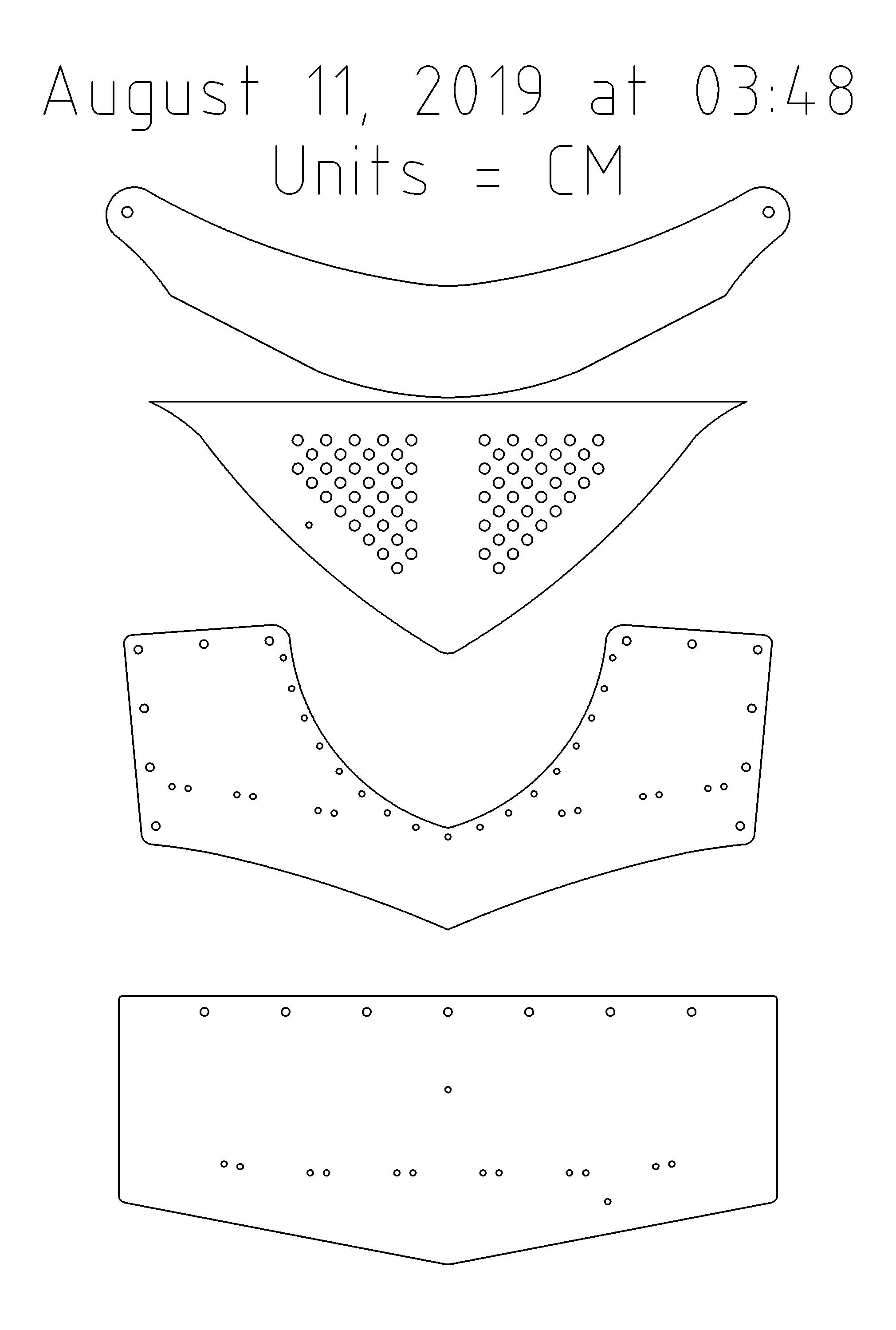

visored_sugarloaf_bottom_L.dxf

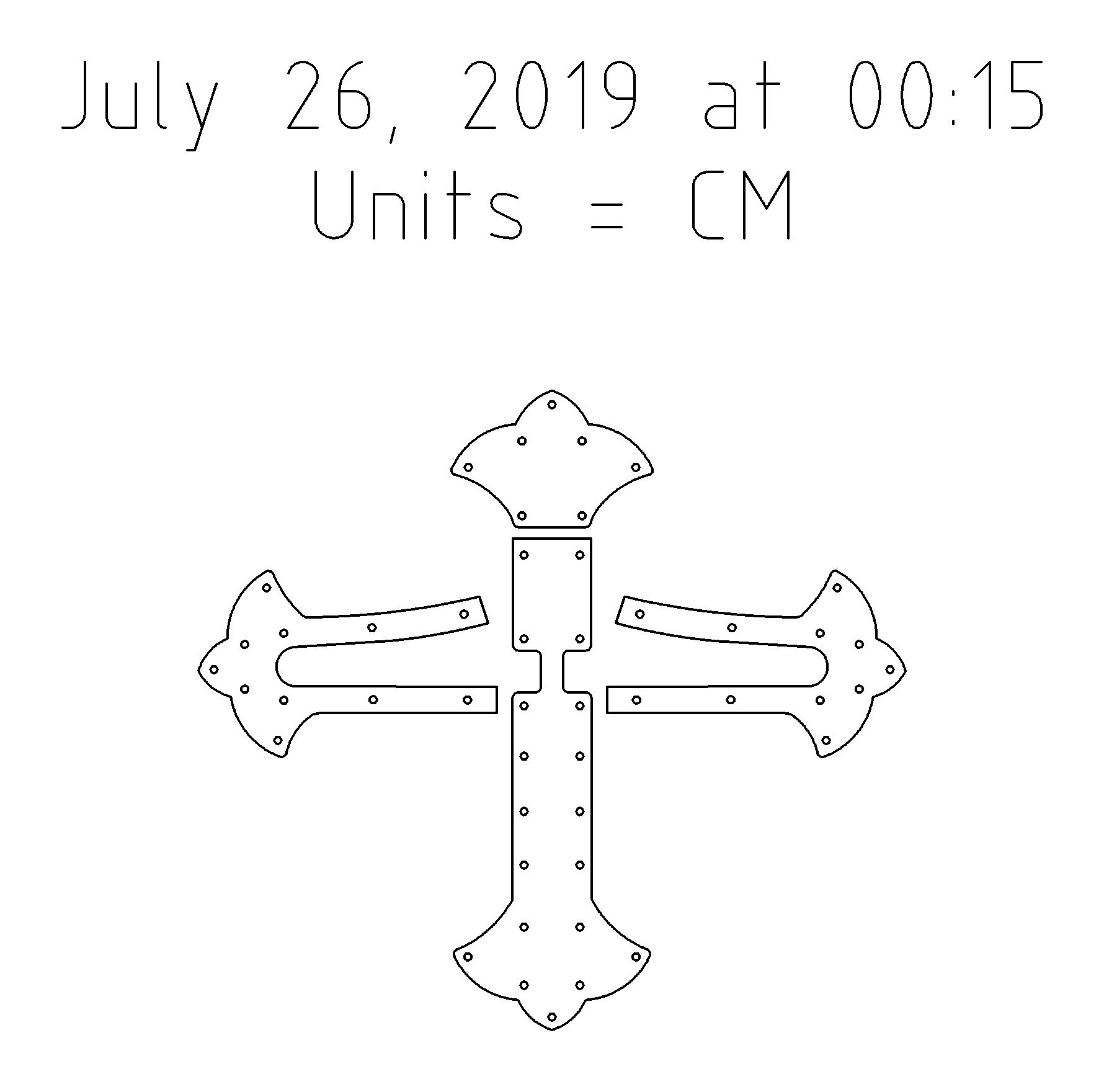

visored_sugarloaf_cross.dxf
